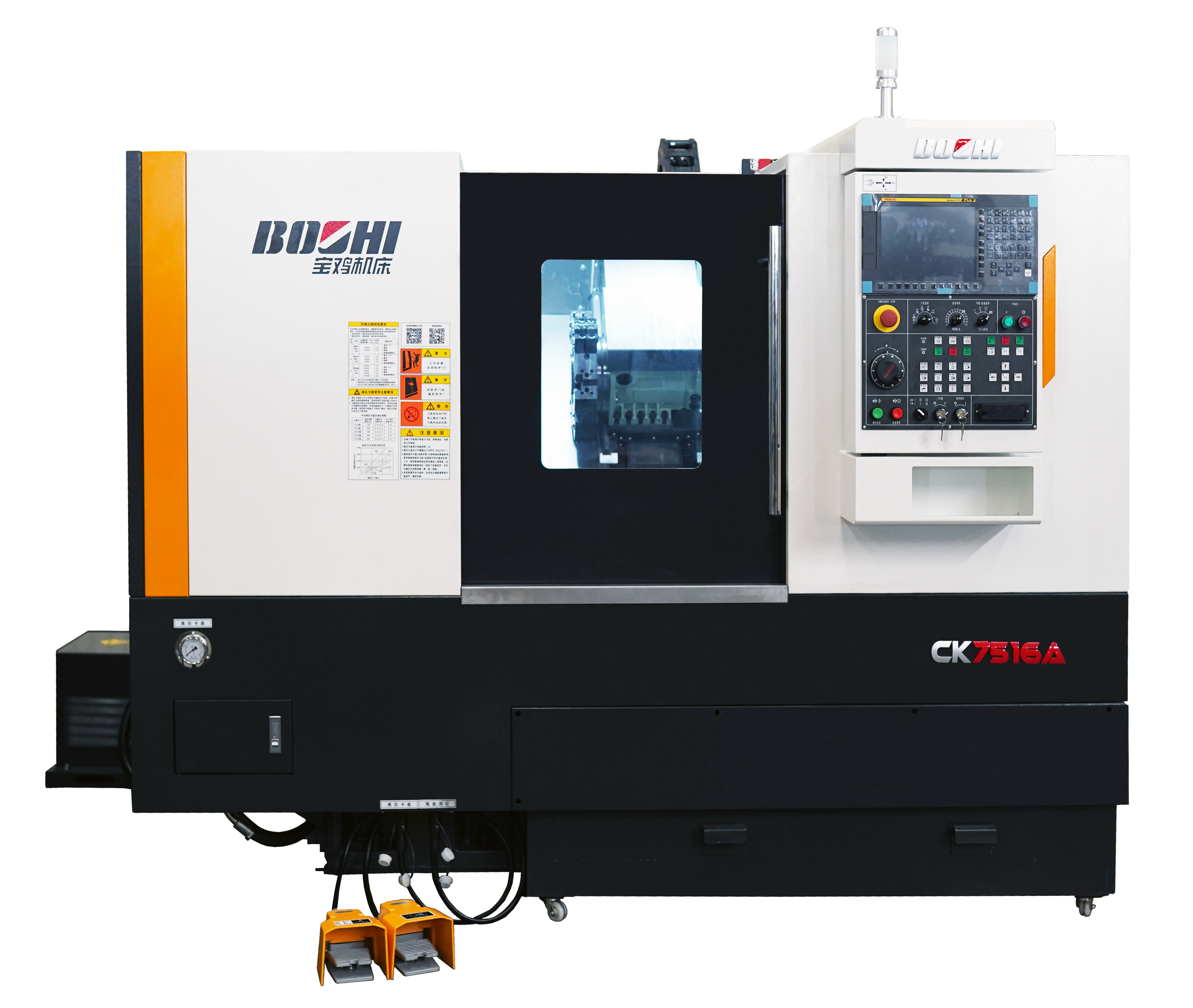

CK7516 series CNC lathe adopts high strength cast iron, bed base integral structure, inclined guide rail, through-hole spindle structure, vibration resistance design and wide area AC spindle motor, spindle bearing and feed screw special bearing transmission noise is low; Equipped with multi-station turret tool rest, can be continuous indexing, knife replacement nearby. The machine can be equipped with Japan FANUC 0I-TF, Germany Siemens 828D CNC system, also can be selected from other brands of CNC system at home and abroad.
|
Item |
Unit |
CK7516 |
CK7516.1000 |
CK7516A |
CK7516A.1000 |
CK7516C |
|
|
Capacity |
Max swing over bed |
mm |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
Φ400 |
|
Max swing over slide |
mm |
Φ260 |
Φ260 |
Φ260 |
Φ260 |
Φ260 |
|
|
Max workpiece length |
mm |
400 |
1000 |
400 |
1000 |
400 |
|
|
Max turning diameter |
mm |
Φ285 |
Φ285 |
Φ285 |
Φ285 |
Φ285 |
|
|
Max bar diameter |
mm |
Φ42 |
Φ42 |
Φ42 |
Φ42 |
Φ42 |
|
|
Spindle |
Hydraulic chuck diameter |
mm |
Φ165 |
Φ165 |
Φ165 |
Φ165 |
Φ165 |
|
Spindle nose |
|
A2-5（GB/T5900.1） |
A2-5（GB/T5900.1） |
A2-5（GB/T5900.1） |
A2-5 （GB/T5900.1） |
A2-5（GB/T5900.1） |
|
|
Spindle thru-hole |
mm |
Φ57 |
Φ57 |
Φ57 |
Φ57 |
Φ57 |
|
|
Spindle speed |
r/min |
55—5500 |
55—5500 |
80—3500 |
80—3500 |
55—5500 |
|
|
Main motor power(cont/30min) |
kW |
11/15 |
11/15 |
7.5/11 |
7.5/11 |
11/15 |
|
|
Tailstock |
Quill diameter/travel |
mm |
Φ70/80 |
Φ70/80 |
Φ70/80 |
Φ70/80 |
Φ70/80 |
|
Center taper |
MT No. |
4/2 |
4/2 |
4/2 |
4/2 |
4/2 |
|
|
Carriage |
Slant degree |
DEG |
45° |
45° |
45° |
45° |
45° |
|
X/Z-axis travel |
mm |
165/410 |
165/1030 |
165/410 |
165/1030 |
165/410 |
|
|
X/Z-axis rapid traverse |
m/min |
12/16 |
12/16 |
12/16 |
12/16 |
30/24 |
|
|
Turret |
Number of stations/ revolving tool stations |
|
8/12 |
8/12 |
8/12 |
8/12 |
8/12 |
|
Tool section (turning/boring) |
mm |
20X20/Φ32 |
20X20/Φ32 |
20X20/Φ32 |
20X20/Φ32 |
20X20/Φ32 |
|
|
Others |
Power |
kVA |
35 |
35 |
35 |
35 |
35 |
|
Dimension(L×W×H) |
mm |
2370×1670×1970 |
3195×1695×1970 |
2370×1670×1970 |
3195×1695×1970 |
2370×1670×1970 |
|
|
Gross weight |
kg |
3000 |
4500 |
3000 |
4500 |
3000 |
|
